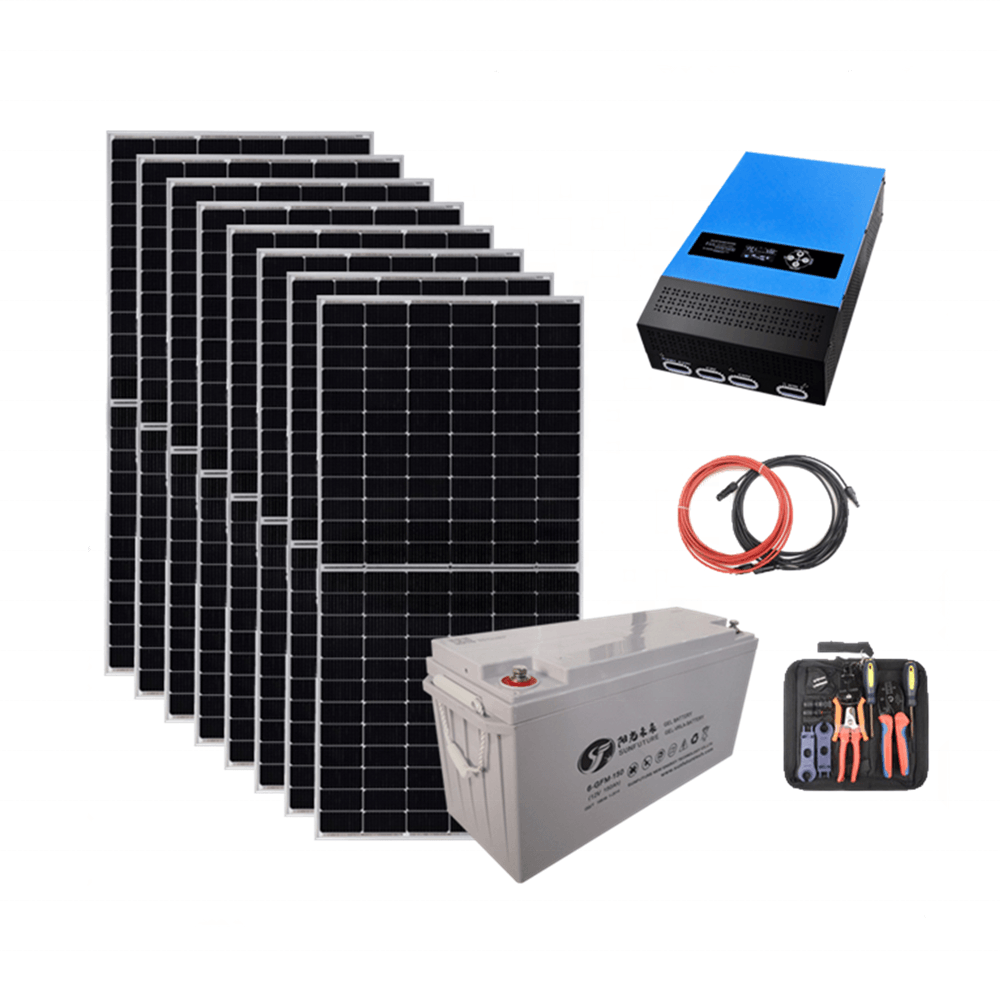

Plan a dedicated solar power setup for selected everyday loads with the SUNFUTURE 1kW off-grid solar power system, offered by DONJOHNSTYLE4URHOME. The listing describes a pure sine wave inverter platform with an LCD and solar charge-controller options. Start with the devices you want to run, then confirm the exact panel, battery, inverter, and controller package before designing your installation.
Why Customers Choose This Product
Product Highlights
An Off-Grid Project Starting Point
The selectors list 1KW and Off-Grid Solar System. That label does not establish battery energy storage, daily generation, or which appliances can operate together; size the system around your actual loads.
Pure Sine Wave Inverter Reference
The source describes a low-frequency toroidal-transformer inverter with pure sine wave output. Confirm the supplied model, continuous and surge ratings, output voltage, frequency, and appliance compatibility.
Onboard Operating Information
The reference inverter includes an LCD, fault-code queries, and DC, AC, and ECO operating modes. Confirm how these functions work on the actual supplied unit and which accessories are required.
Controller Type Needs Selection
The opening description mentions optional MPPT or PWM, while the detailed reference describes built-in PWM. Confirm the supplied controller type, current rating, and solar-input limits rather than assuming an MPPT upgrade is included.
Specifications
- Product brand reference: SUNFUTURE.
- Seller/vendor: DONJOHNSTYLE4URHOME.
- Listed solar power selection: 1KW.
- Listed system type: Off-Grid Solar System.
- Reference inverter waveform: pure sine wave.
- Reference inverter design: low-frequency toroidal transformer, wall-mounted format.
- Reference monitoring: LCD and fault-code query.
- Reference operating modes: DC, AC, and ECO.
- Reference AC charge-current adjustment: 0–30A; confirm supplied-unit capability.
- Reference communications: RS232/RS485 optional, not established as standard inclusion.
| Reference item | Source detail | Confirmation needed |
|---|---|---|
| Model family | LW-10212/24 | Exact supplied model and suffix |
| Rated output | 1000W in the 1kW inverter column | Continuous rating, surge capability, and operating conditions |
| Battery voltage reference | 12/24V | Actual fixed system voltage and compatible battery specification |
| AC output choices in family table | 110, 115, 120, 220, 230, or 240VAC; 50/60Hz references | Actual supplied voltage and frequency; do not assume all are switchable or that split-phase is supported |
| Controller | MPPT or PWM mentioned; detailed table describes PWM | Exact type, current rating, PV voltage window, and array limit |
| Panel and battery package | No itemized quantities or usable storage capacity in source text | Models, quantities, panel wattage, battery chemistry, Ah/Wh, and supplied accessories |
The source includes a wider 1–6kW inverter table and references larger solar systems. These do not establish larger-system equipment or capabilities for the selected 1kW product. Its 5kW customer-feedback reference is not evidence of this configuration's performance.
Ideal For
- Buyers planning a small, professionally sized off-grid solar installation.
- Selected household or office loads within the confirmed system ratings.
- Projects where panel placement, storage needs, and electrical connections can be assessed before purchase.
Important Information
- Obtain an itemized bill of materials covering panels, inverter, charge controller, batteries, mounting, cables, connectors, protection, and disconnects. Do not assume a complete ready-to-install package.
- The 1kW label is not 1kWh of stored energy, a guaranteed daily yield, or proof of a 1kW panel array. Confirm array nameplate capacity separately from inverter output and battery storage.
- Confirm PWM versus MPPT and the exact controller rating. The source lists multiple PWM current and voltage combinations; they are not interchangeable limits for one unit.
- Have a qualified installer match panel open-circuit voltage, operating voltage, current, array wiring, and temperature-adjusted limits to the supplied controller.
- Confirm battery inclusion, chemistry, nominal voltage, usable capacity, charging profile, protection, ventilation, and installation location. No runtime is established without a specified battery and load.
- Confirm actual AC output voltage, frequency, grounding arrangement, circuit protection, continuous output, and motor-starting requirements before connecting appliances.
- Solar generation varies with sunlight, shading, weather, orientation, and system losses. No all-day operation, household coverage, bill reduction, or charging-time guarantee is established.
- The source describes generator compatibility and AC charging. Confirm permitted generator input ratings and connection arrangements; a generator is not established as included.
- A family-table conversion-time reference of up to 4ms under a typical load does not establish a certified UPS function, uninterrupted operation for every device, or automatic building-circuit backup.
- Off-grid labeling does not establish utility export, grid-tie approval, compatibility with existing solar equipment, or permission to energize building wiring. Never backfeed an outlet; use qualified electrical installation and appropriate isolation equipment where required.
- Confirm current model manuals, certifications for the intended installation, mounting, environmental rating, cooling clearances, and site requirements. Listed protection features do not replace safe installation.
- Confirm dimensions and weights with units, freight charges, lead time, unloading, installation labor, warranty, service support, and return conditions before ordering.
Frequently Asked Questions
What does the 1kW label mean?
The selector lists 1KW, and the reference inverter table includes a 1000W model. Confirm the actual inverter output and solar array rating separately. The label does not specify battery capacity, daily energy production, or runtime.
Are panels and batteries included?
The source does not provide an itemized text packing list. Request written confirmation of panels, batteries, inverter, controller, mounting, cables, connectors, and protection equipment, including model numbers and quantities.
Does it have MPPT or PWM charging?
The introduction mentions optional MPPT or PWM, while the detailed reference describes built-in PWM. Confirm the supplied controller type, current rating, solar voltage limits, and array capacity before ordering.
How long can it power my appliances?
Runtime is not established. It depends on usable battery capacity, appliance demand, startup loads, inverter losses, and solar generation. Have the equipment package sized for the devices and operating hours you need.
Can it connect to my home's wiring or export power?
Building-circuit backup and utility export are not established by this off-grid listing. A qualified electrician must assess approved equipment, isolation, protection, and connection requirements. Never backfeed a wall outlet.
Confirm the exact 1kW equipment package and your intended loads, then have the array, storage, and electrical installation sized together. Finalize component inclusions and delivery terms before ordering your SUNFUTURE off-grid system.
