RevX Ozone Cold Plunge Water Filtration System

Why Customers Choose This Product

• Matte-black steel cabinet.
• Listed 20-micron filter.
• Pump rated at 1700 GPH in the source.
• Ambohr SPA-124 ozone generator with venturi injector.
• Built-in shutoff valve.
• Preassembled plumbing.

Product Highlights

Cabinet-Based Layout

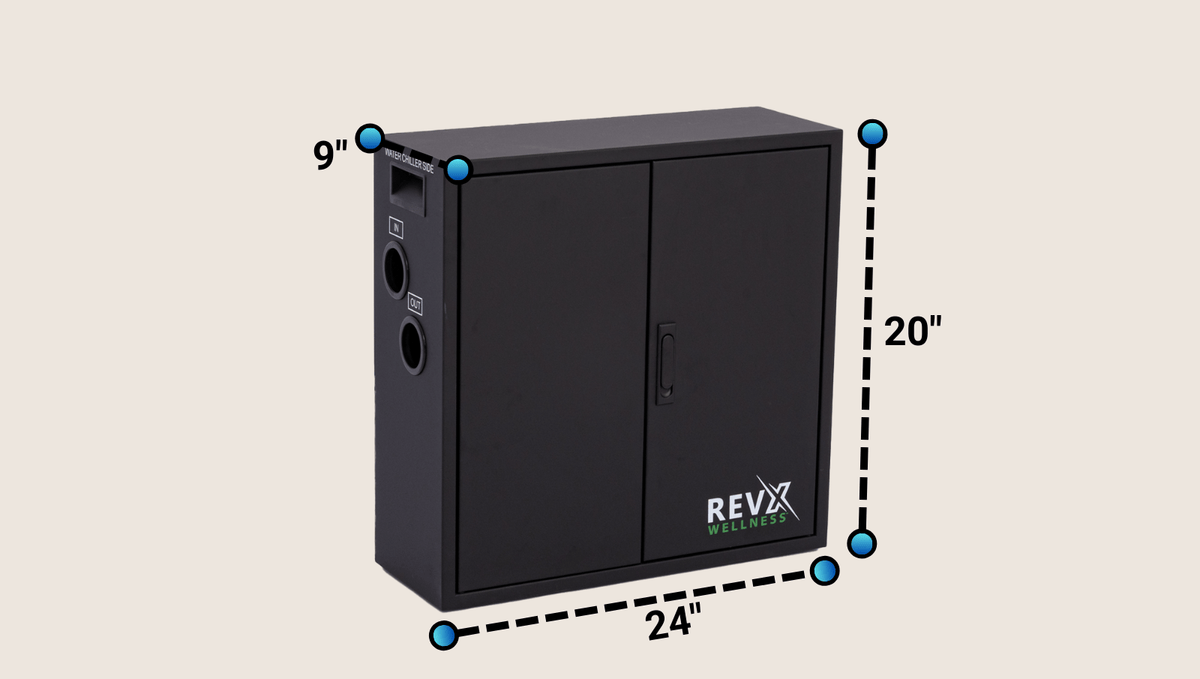

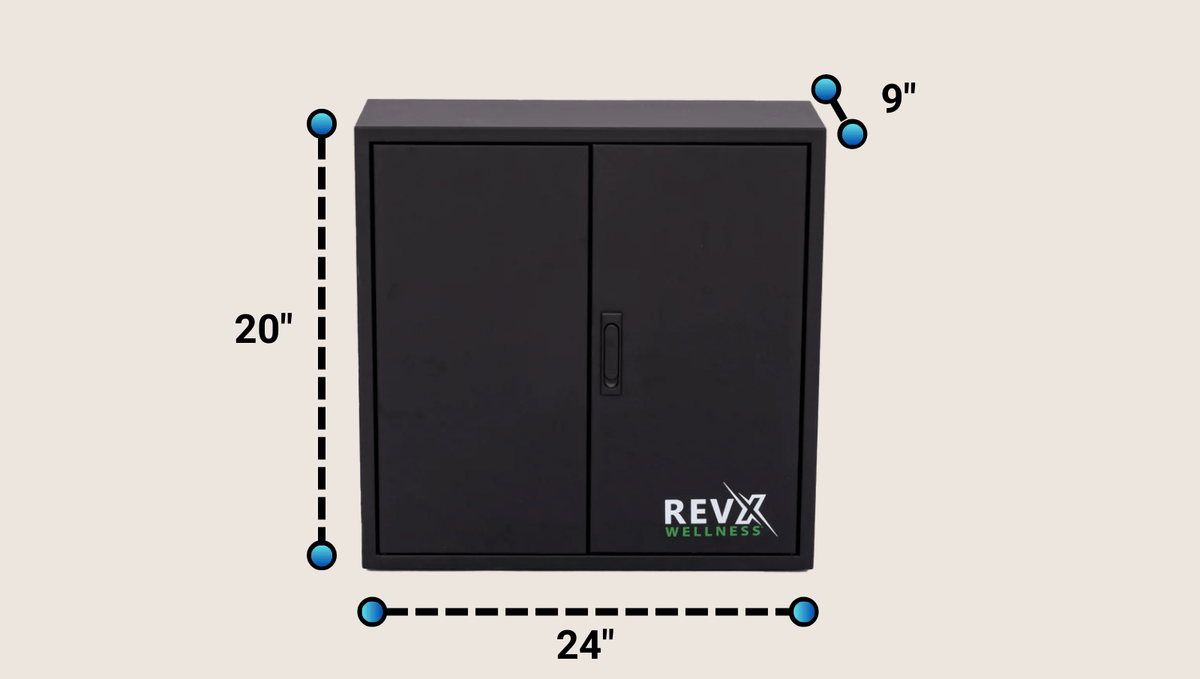

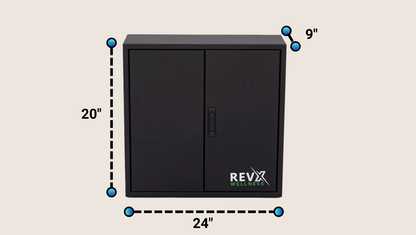

The source describes an all-steel cabinet with a black matte finish. Confirm cabinet dimensions, service access, mounting, ventilation, and exposure limits before selecting a location.

Circulation Pump

A 110V/60Hz pump is listed with a 1700 GPH rating. Actual installed flow depends on plumbing resistance, elevation, filter condition, and connected equipment; the pump rating is not guaranteed system throughput.

Accessible Filter Assembly

The listed package includes a clear filter holder and a 20-micron filter. Confirm the cartridge size, nominal or absolute rating, replacement part number, and safe service procedure.

Ozone Injection Equipment

An Ambohr SPA-124 generator and venturi injector are listed. Obtain the exact dosing, contact-time, ventilation, off-gas, and safe-entry instructions; ozone equipment does not establish sterile water or eliminate other required water care.

Preassembled Connections

The source lists ¾-inch PVC plumbing, inlet/outlet barbed hose adapters, and a shutoff valve. Confirm adapter sizes and your tub’s flow, pressure, and connection requirements rather than assuming universal fit.

Specifications

• Vendor: RevX Wellness.
• Product: ozone water filtration system for compatible cold plunges.
• SKU: RXW-0109.
• Cabinet: steel, matte-black finish.
• Pump rating reference: 1700 GPH; actual installed flow to verify.
• Pump electrical reference: 110V, 60Hz.
• Ozone generator: Ambohr SPA-124 with venturi injector.
• Ozone-generator electrical reference: 110V, 60Hz.
• Filter reference: 20-micron cartridge with clear holder.
• Plumbing reference: ¾-inch PVC, barbed inlet/outlet adapters, shutoff valve.

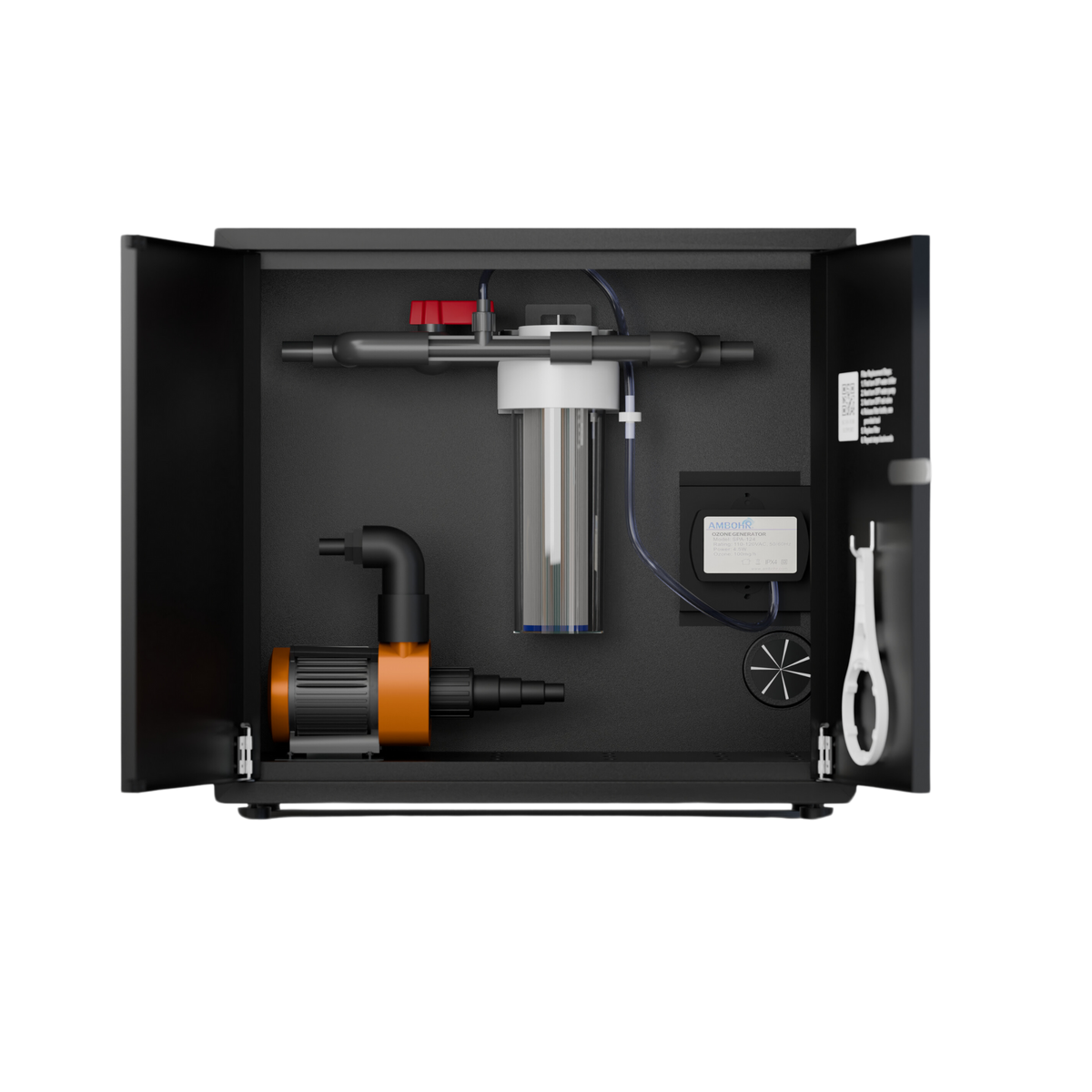

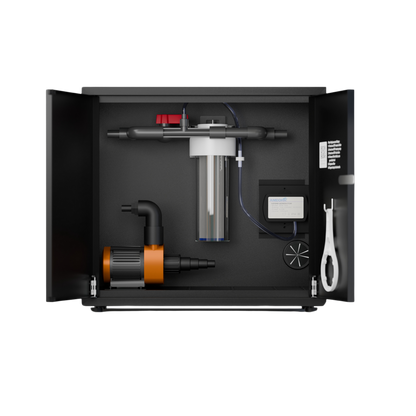

• Listed inclusions: metal cabinet, ozone generator with venturi injector, water pump, clear filter holder and filter, shutoff valve, and preassembled plumbing.
• Design/manufacturing description: designed in California, manufactured in Asia; specific manufacturing country not stated.
• Warranty reference: one-year standard warranty; full terms to confirm.
• Dimensions, supported tub volume, maximum pressure, ozone output, and total electrical load: not supplied.

Ideal For

• Compatible cold plunge projects needing separate circulation and filtration equipment.
• Buyers able to verify plumbing, electrical, and ozone-safety requirements before installation.
• Users prepared to maintain filtration, water chemistry, and equipment on an ongoing basis.

Important Information

• This is a filtration and circulation system with ozone equipment. The source does not establish an included tub, refrigeration chiller, or cooling capacity.
• Confirm supported water volume, required flow and pressure, compatible materials, hose sizes, priming, installation orientation, and suction/return protection with the manufacturer. Do not operate during immersion unless the complete installation is specifically approved for it.
• The source describes continuous pump operation and recommends timing only the ozone generator for one hour per 24 hours. This is a source reference, not a universal dosing instruction. Obtain written model- and installation-specific guidance before use; timer inclusion is not established.
• Ozone can be hazardous to inhale. Obtain ozone output, injector requirements, contact time, off-gas controls, ventilation, residual limits, and any required waiting period before entry. Do not assume it is safe to occupy the tub while ozone is operating.
• Ozone and a sediment filter do not establish sterile, pathogen-free, drinking-safe, or chemically balanced water. Follow the complete approved routine for testing, compatible sanitizer, cleaning, filter replacement, and water changes.
• The 1700 GPH figure is a listed pump rating, not verified flow through the assembled filter and injector. Request operating-flow conditions before sizing the system or connecting a chiller.
• Have a qualified electrician verify complete-unit voltage, current, power, grounding, ground-fault protection, wet-area placement, and circuit requirements. The listed 110V/60Hz components and plug-and-play wording do not establish compatibility with every outlet.
• The source describes the pump as submersible/inline; that does not establish the steel cabinet, electrical assembly, or complete system as submersible. Confirm the permitted installation method for each component.
• All-weather indoor/outdoor wording is not accompanied by enclosure ratings or ambient limits. Confirm rain protection, drainage, ventilation, corrosion care, and freezing precautions. Do not assume unrestricted weather exposure.
• Confirm assembly and connection work, cabinet dimensions, net/shipping weight, service clearances, and the full package list. Hoses, clamps, adapters beyond those named, mounting hardware, and a timer should not be assumed included.
• Isolate power and water pressure before filter or plumbing service, following the manual. Confirm continuous-use limits and maintenance intervals rather than relying on a 24/7/365 claim.
• No best-in-market, lowest-price, medical, recovery, purification, or guaranteed water-clarity outcome is promised.
• The source lists a one-year standard warranty without detailed coverage. Confirm issuer, eligibility, exclusions, claim procedure, and freight/labor treatment, along with return conditions, delivery charges, lead time, and service support before purchase.
