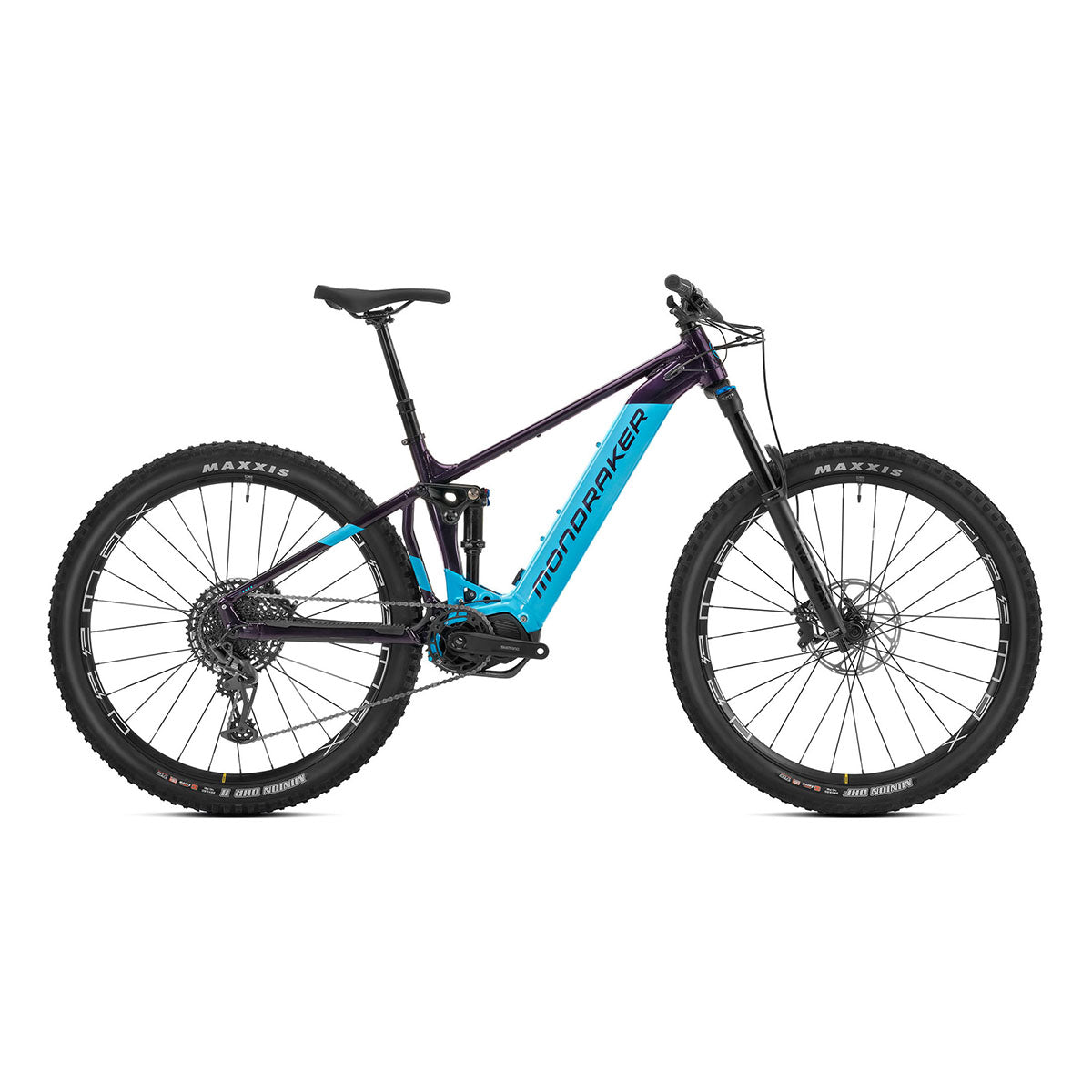

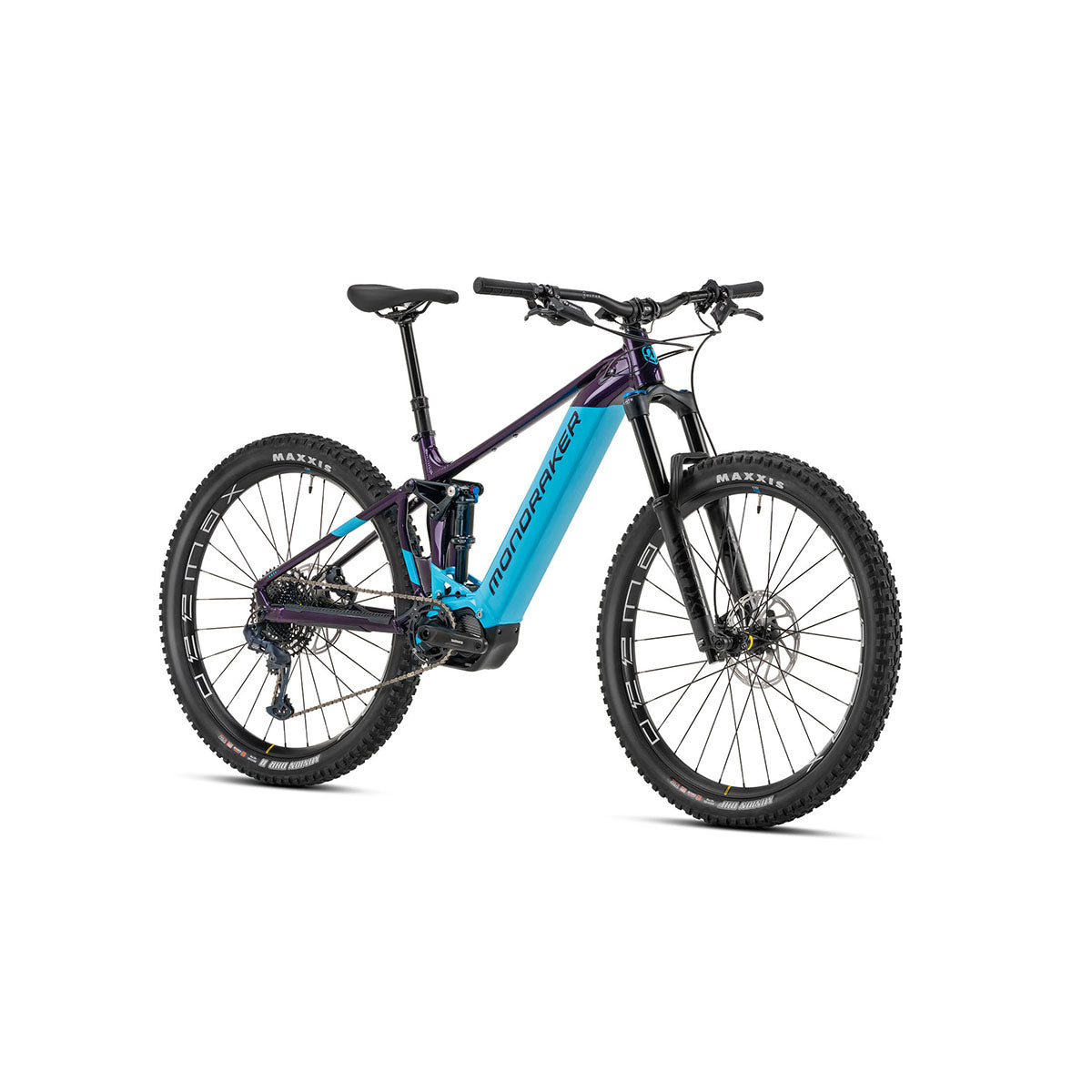

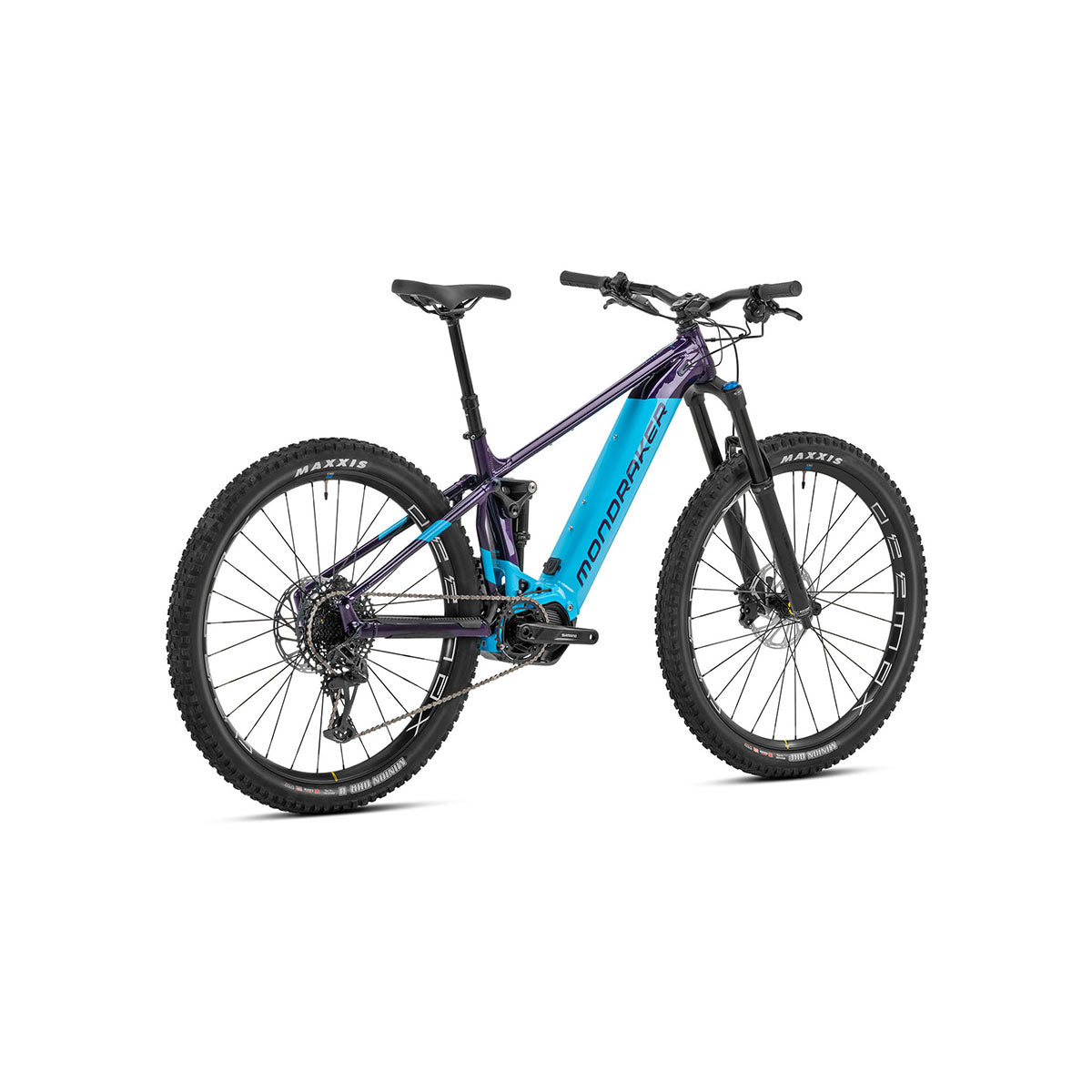

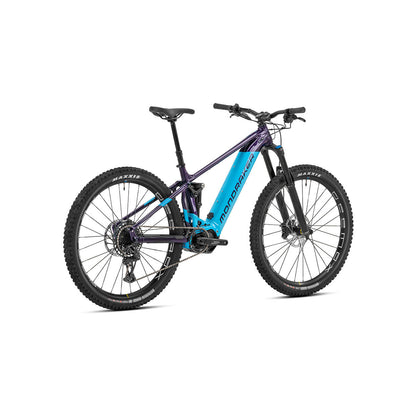

Take on trail and all-mountain rides with electric assistance and an adjustable full-suspension setup. The Mondraker Dusk R SE pairs a Shimano STEPS EP800 motor and integrated 630Wh battery with a 160mm Fox fork and 150mm rear travel. Its 29-inch wheels, SRAM NX Eagle shifting, and dropper seatpost provide a practical combination for changing gradients and terrain, finished in Deep Purple / Light Blue.
Why Customers Choose This Product
Product Highlights
Shimano Electric Assistance
The Shimano STEPS EP800 motor works with an internal 630Wh battery and E8000 display. Adjust your riding plan to the terrain and assistance settings rather than relying on an assumed distance per charge.
Fox Front and Rear Suspension
A Fox 36 Rhythm fork provides 160mm of travel, paired with a Fox Float DPS Performance rear shock and Mondraker's 150mm Zero Suspension System. Compression, rebound, and air-pressure adjustments allow setup for the rider within the manufacturer's guidance.
Alloy Frame with Forward Geometry
The Dusk 6061 Alloy Stealth Evo frame features internal cable routing, a one-piece Monoblock upper link, and a Boost rear axle. Four sizes let you compare reach and stack to your preferred riding position.
12-Speed Trail Drivetrain
A SRAM NX Eagle rear derailleur and single-click shifter pair with an 11–50T cassette and 34T chainring. The Onoff Pija dropper seatpost offers size-specific travel for changing seated and descending positions.
Minion Tire Pairing
The listed build combines a Maxxis Minion DHF front tire with a Minion DHR II rear tire, both 29 × 2.6 inches with 3C MaxxTerra compound and EXO+ protection. Rims and tires are tubeless-ready; confirm the supplied setup before riding.
Optional Capacity Expansion
A compatible Simplo 360Wh external battery can increase combined nominal capacity to 990Wh. The extender is sold separately, and compatibility, mounting equipment, and installation requirements must be confirmed.
Specifications
- Brand and model
- Mondraker Dusk R SE
- Colorway
- Deep Purple / Light Blue
- Frame
- Dusk 6061 Alloy Stealth Evo; e-bike-optimized Zero Suspension System; 150mm rear travel; Forward Geometry; Boost 12 × 148mm rear axle
- Frame details
- Tapered head tube; one-piece Monoblock upper link; HHG internal cable routing; sealed bearings; 17mm oversized axles; integrated dropout speed sensor
- Motor
- Shimano STEPS EP800
- Battery
- Simplo internal 630Wh; listed as non-removable
- Display
- Shimano STEPS E8000
- Optional external battery
- Simplo 360Wh, sold separately; 990Wh combined nominal capacity
- Fork
- Fox 36 29 Float FIT GRIP EVOL Rhythm; 160mm travel; Boost 15 × 110mm axle; 44mm offset; compression, rebound, and air-preload adjustment
- Rear shock
- Fox Float DPS LV EVOL Performance, 205 × 65mm; three-position compression lever, rebound, and air-preload adjustment
- Listed shock tune
- Medium compression; medium rebound; 0.4 volume spacer
- Headset
- Onoff Saturn tapered, sealed bearings
- Stem
- Onoff Sulfur FG, 30mm, 0°, 31.8mm clamp
- Handlebar
- Onoff Sulfur 1.0 alloy; 780mm width; 20mm rise; 9° backsweep; 5° upsweep
- Grips
- Onoff Diamond lock-on, 135mm
- Seatpost
- Onoff Pija internal dropper, 31.6mm; 125mm travel for S, 150mm for M, 170mm for L/XL
- Saddle
- Fizik Terra Aidon X5, 145mm
- Front and rear brakes
- SRAM G2 R four-piston calipers; 200mm Centerline six-bolt rotors; tool-free lever reach adjustment
- Rims
- MDK-HP1 29; 30mm internal width; tubeless-ready; 32 spokes
- Spokes
- CN round stainless steel
- Front hub
- Formula DC711, Boost 15 × 110mm, sealed bearings
- Rear hub
- Formula EHL148, Boost 12 × 148mm, sealed bearings
- Front tire
- Maxxis Minion DHF 29 × 2.6; tubeless-ready; 3C MaxxTerra; EXO+; 120 TPI; folding bead
- Rear tire
- Maxxis Minion DHR II 29 × 2.6; tubeless-ready; 3C MaxxTerra; EXO+; 120 TPI; folding bead
- Crankset
- FSA, 165mm
- Chainring
- SRAM X-Sync 2 Eagle, 34T steel, narrow-wide, 104 BCD
- Rear derailleur
- SRAM NX Eagle, long cage, 12-speed
- Shifter
- SRAM Trigger NX Eagle, 12-speed, single click
- Cassette
- SRAM PG-1210, 11–50T, 12-speed
- Chain
- SRAM SX Eagle, 12-speed, PowerLock
- Derailleur hanger
- Mondraker M068
Size and Geometry
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 380mm | 420mm | 450mm | 490mm |
| Top tube | 605mm | 625mm | 650mm | 670mm |
| Reach | 450mm | 470mm | 490mm | 510mm |
| Stack | 622mm | 622mm | 640mm | 640mm |
| Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
| Head tube length | 110mm | 110mm | 130mm | 130mm |
Listed shared geometry: 65.5° head-tube angle, 76° effective seat-tube angle, 73.5° actual seat-tube angle, 455mm chainstays, 336mm bottom-bracket height, −25mm bottom-bracket drop, and 44mm fork offset. Confirm specifications and geometry for the exact model year supplied before purchase.
Ideal For
- Trail and all-mountain riders looking for electric assistance and Fox suspension.
- Buyers seeking a 29-inch full-suspension e-MTB with a dropper seatpost.
- Riders comparing fit across S, M, L, and XL frame sizes.
- Owners considering a separately purchased compatible external battery.
Important Information
- Confirm the exact model year, supplied component build, rider fit, total load limit, complete bike weight, charger inclusion, and pedal inclusion before ordering. Pedals and bike weight are not specified in the existing component list.
- The internal 630Wh battery is listed as non-removable. Follow the manufacturer's charging, storage, and servicing instructions.
- The optional 360Wh external battery is sold separately. Confirm compatibility, required mounting hardware, and installation procedures before purchase.
- Watt-hours describe battery energy capacity, not guaranteed riding distance. Actual range varies with terrain, assistance level, rider load, temperature, and battery condition.
- Have a qualified bicycle technician inspect assembly, brakes, wheel retention, drivetrain, and suspension setup before the first ride. Follow component service intervals.
- Wear an appropriate helmet and protective equipment. Ride within your ability and the manufacturer's intended-use limits; suspension travel is not approval for every jump, race, or terrain.
- Check local e-bike classifications and route access restrictions. This description does not establish a legal vehicle class, public-road approval, or unrestricted trail access.
- Use only manufacturer-approved compatible charging equipment. Do not charge damaged batteries or leave charging unattended; follow the supplied battery safety instructions.
- Tubeless-ready rims and tires may require additional setup materials and work. Confirm whether the supplied bike is already set up tubeless.
Frequently Asked Questions
What motor and battery does the Dusk R SE use?
The listed build uses a Shimano STEPS EP800 motor, a Simplo internal 630Wh battery, and a Shimano STEPS E8000 display. The internal battery is described as non-removable.
Is the optional external battery included?
No. The compatible Simplo 360Wh external battery is sold separately. It can increase combined nominal capacity from 630Wh to 990Wh; confirm compatibility, mounting hardware, and installation requirements before purchase.
Which suspension components are listed?
The bike is listed with a 160mm Fox 36 Rhythm fork and a Fox Float DPS LV EVOL Performance rear shock. Mondraker's Zero Suspension System provides 150mm of rear travel.
Which frame sizes can I choose?
The size selections are S, M, L, and XL, with listed seat-tube lengths of 380mm, 420mm, 450mm, and 490mm respectively. Compare reach, stack, and your preferred riding position with a qualified bike fitter before selecting a size.
Are the tires supplied tubeless?
The Maxxis Minion DHF front tire, Minion DHR II rear tire, and MDK-HP1 rims are listed as tubeless-ready. This does not confirm a completed tubeless setup; check the supplied configuration and any additional setup requirements before use.
Choose the frame size that matches your fit and riding plans, then confirm the supplied build before ordering. The Dusk R SE brings Shimano assistance, Fox suspension, and a 29-inch Minion tire pairing together for your next trail setup.
